FNIRSI DSO 152 Handheld Digital Oscilloscope【Appearance updated】



Highlights

✦ Faster sampling speed: FNIRSI DSO152 mini oscilloscope has a real-time sampling rate of 2.5 MS/s and a 200 KHz bandwidth. The 10 x probe can measure up to 800 VPP, which is equivalent to 280 V AC. Voltages up to 400 V can be measured.

✦ Professional Designed: Features with full trigger function (AUTO/Normal/Single). Works perfectly for both periodic analog signals and aperiodic digital signals. 2.8 inch LCD display with a resolution of 320*240, clear and easy to observe.

✦ Portable Mini Oscilloscope: Pocket oscilloscope is an Assembled finished Machine, lightweight and easy to carry, it can avoid assembling welding process problems. Applicable to the maintenance industry and R&D education industry.

✦ Easy Measuring: Equipped with efficient one-key AUTO setting of all parameters, the measured waveform can be displayed without cumbersome adjustment. Long press the AUTO button to quickly calibrate the baseline,fast measurement of waveforms.

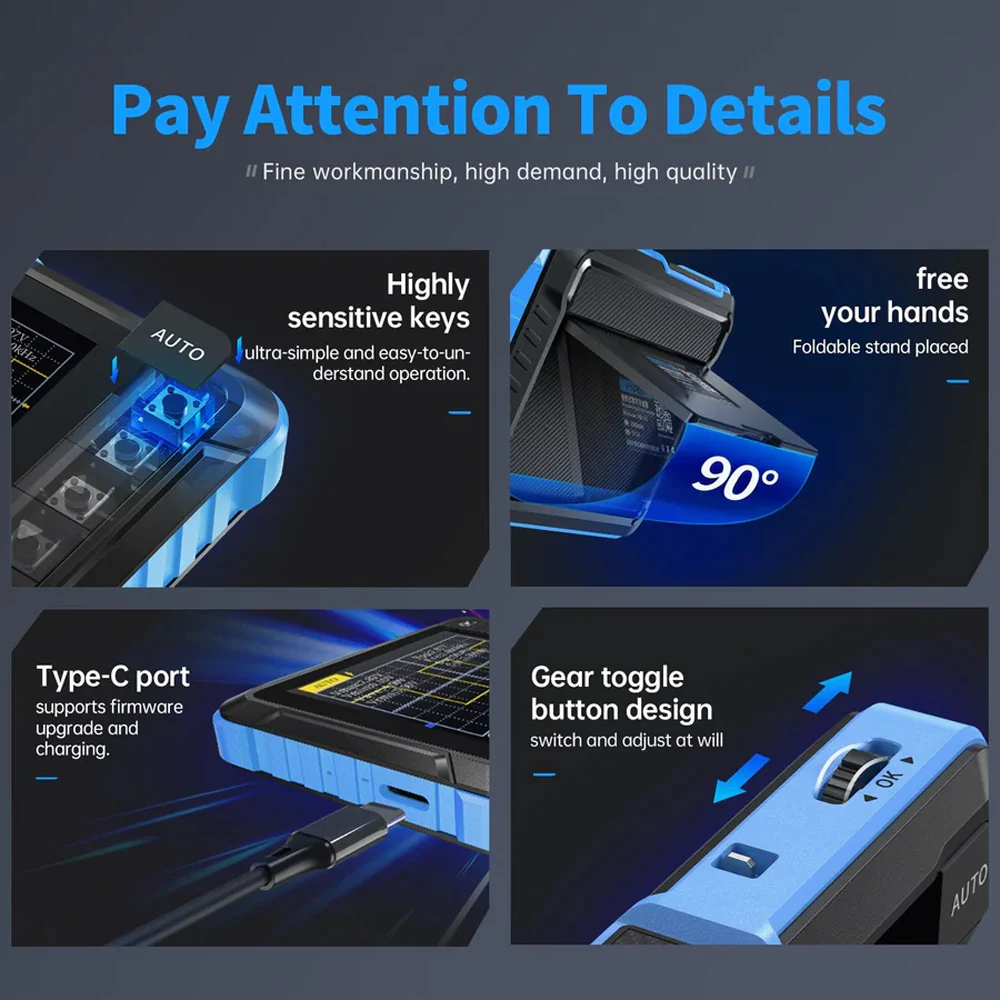

✦ Longer Battery Life: Automotive oscilloscope has a built-in 1000 mAh high-quality lithium battery, which can be used continuously for about 4 hours after being fully charged. Type-C interface supports charging and data transmission, firmware upgrade.

Oscilloscope parameter introduction:

- The oscilloscope has a real-time sampling rate of 2.5MS/s, 200kHz bandwidth;

- With complete trigger functions (single, normal, automatic), it can be used freely for both periodic analog signals and non-periodic digital signals;

- The highest voltage signal of ±400V can be measured;

- Equipped with high-efficiency one-button AUTO, it can display the measured waveform without cumbersome adjustments;

- Come with 1KHz calibration square wave, easy and convenient probe calibration.

Parameter Index:

- Sampling rate: 2.5MS/s (GS/s)

- Bandwidth: 200Khz (MHz)

- Vertical sensitivity: 10mV/ Div -20V/ Div (according to 1-2-5 progressive)

- Time base range: 10us/ Div -50s/ Div (according to 1-2-5 progressive)

- Coupling method: AC/DC

- Display: 2.8 inches / PPI: 320×240

- USB charging: 5V/1A

- Lithium battery capacity: 1000mAh

- Calibration square wave: frequency: 1K; duty cycle: 50%

- Voltage range: X1:±40V( Vpp: 80V) / X10:±400V( Vpp: 800V)

- Trigger mode: auto/normal/single

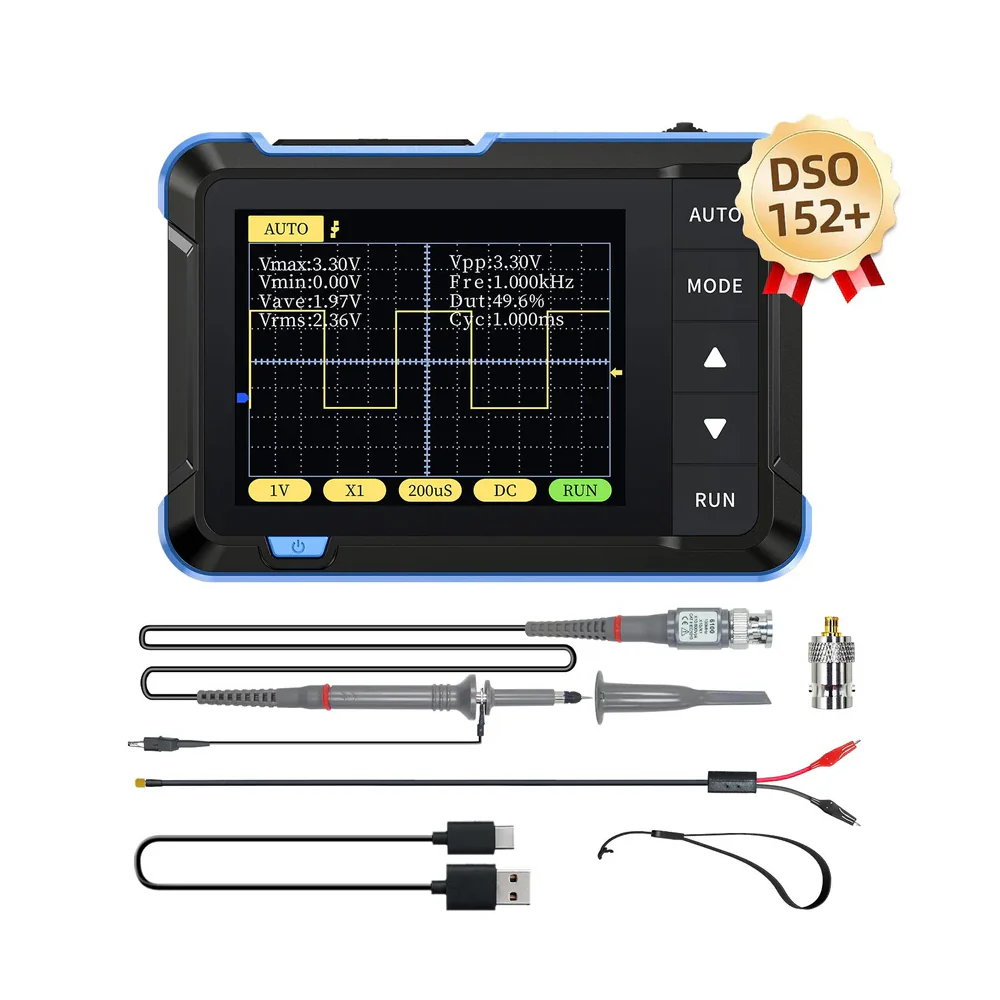

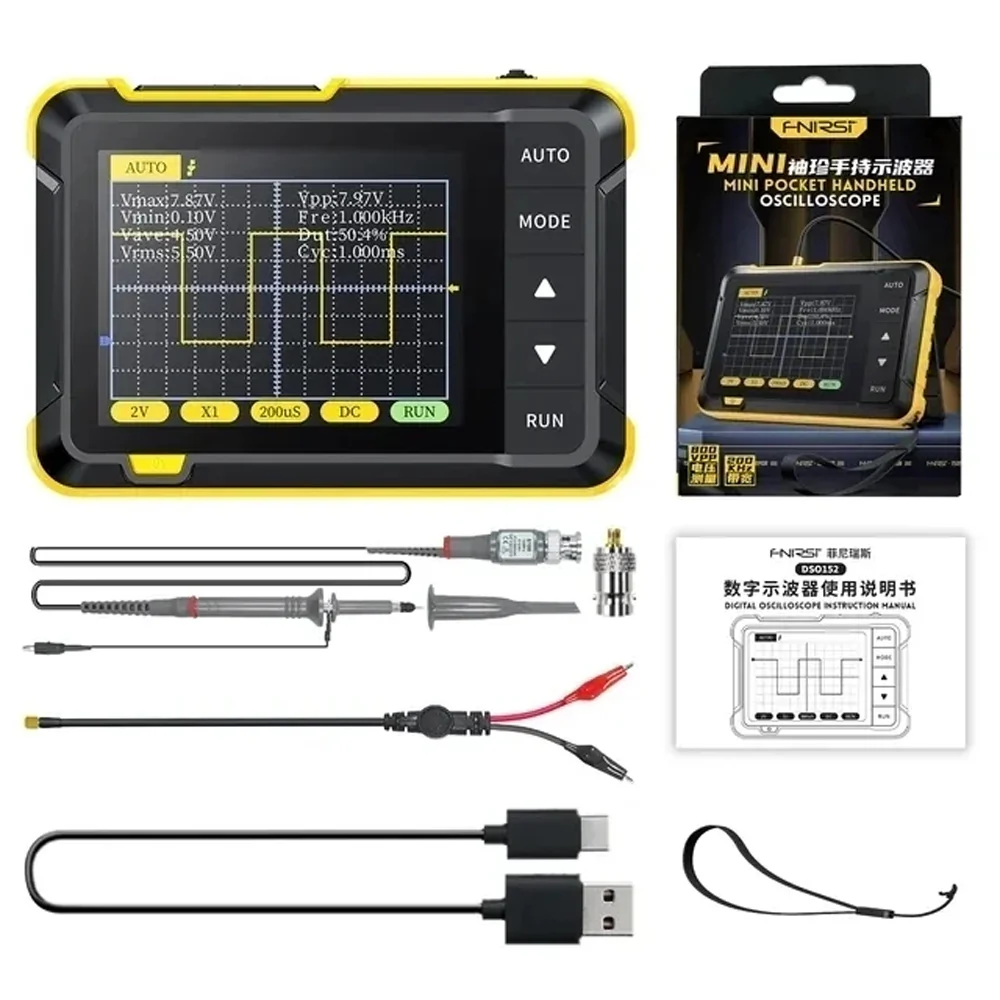

Package list:

- 1×Oscilloscope Host

- 1×Type-C Data Cable

- 1×Common Probe

- 1×P6000 High Voltage Probe

- 1×Adapter

- 1×Instruction Manual
