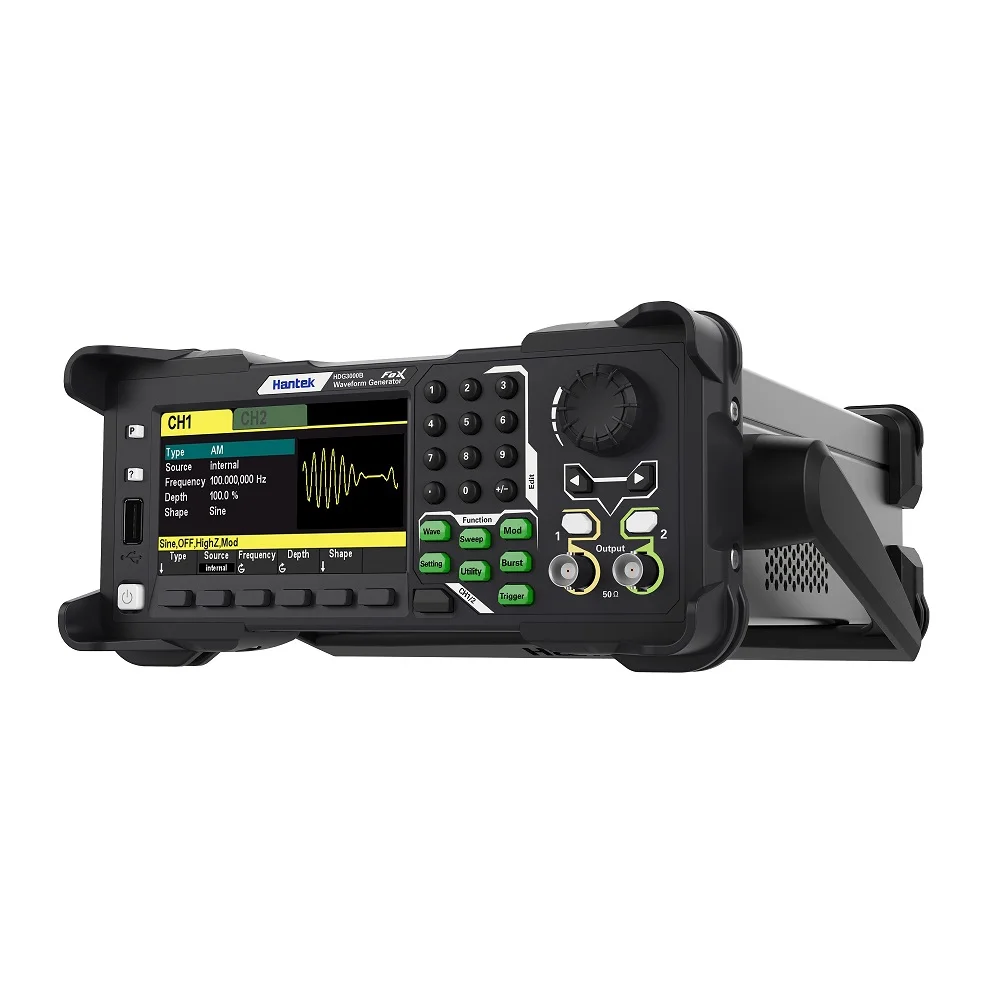

Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + Harmonic Generator + Frequency Meter

Select Ships From

Select Color

From $67.07

Original: $223.57

-70%

Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + Harmonic Generator + Frequency Meter—

$223.57

$67.07

Select Ships From

Select Color

From $67.07

Original: $223.57

-70%

Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + Harmonic Generator + Frequency Meter—

$223.57

$67.07

The Story

Hantek HDG3000B sets Digital Arb Waveform Generator 2CH DDS Frequency Meter 300MSa/s Function Signal Generator

Features

1.HDG3000B series integrates 5 functions of arbitrary waveform generator,pulse generator,80MHz frequency meter,function generator and harmonic generator.

2.UsingDDS direct digital frequency synthesis technology.

3.Up to 300MSa/s sampling rate,16bits vertical resolution to ensure the accuracy of waveform amplitude.

4.Equivalent performance dual-channel as standard,equivalent to two independent signal sources.

5.The storage depth of up to 2M ensures the creation of more waveform cycles and the creation of better waveform details.

6.4.3-inch color TFT LCD display,the user interface is clear and intuitive.

7.Rich modulation functions,support AM,DSB-AM,FM,PM,ASK,FSK,PSK,BPSK,QPSK,3FSK,4FSK,OSK and PWM,etc.

8.Exponential rise,exponential fall,ECG signal,Gaussian,Haversine,Lorentz,DTMF,DC voltage,etc.A total of more than 160 kinds of arbitrary signals.

Frequency range: 1μHz ~ 100MHz/80MHz/60MHz/40MHz/25MHz/15MHz.
Up to 300MSa/s sampling rate, no distortion of analog waveforms.
16-bit vertical resolution ensures the accuracy of waveform amplitude.
Equip with dual channels with equal performance, equivalent to two independent signal sources.
The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details.
A 4.3-inch color TFT LCD screen, a clear and intuitive user interface.
Rich modulation function, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.
1μHz frequency resolution: When the impedance is high, the amplitude range is 2mV~20Vpp. When the impedance is 50Ω, the amplitude range is 1mV~10Vpp.
Built-in 80MHz high-resolution frequency meter.
Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device).
More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.
Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in harmonic detection equipment or harmonic filter equipment test.
