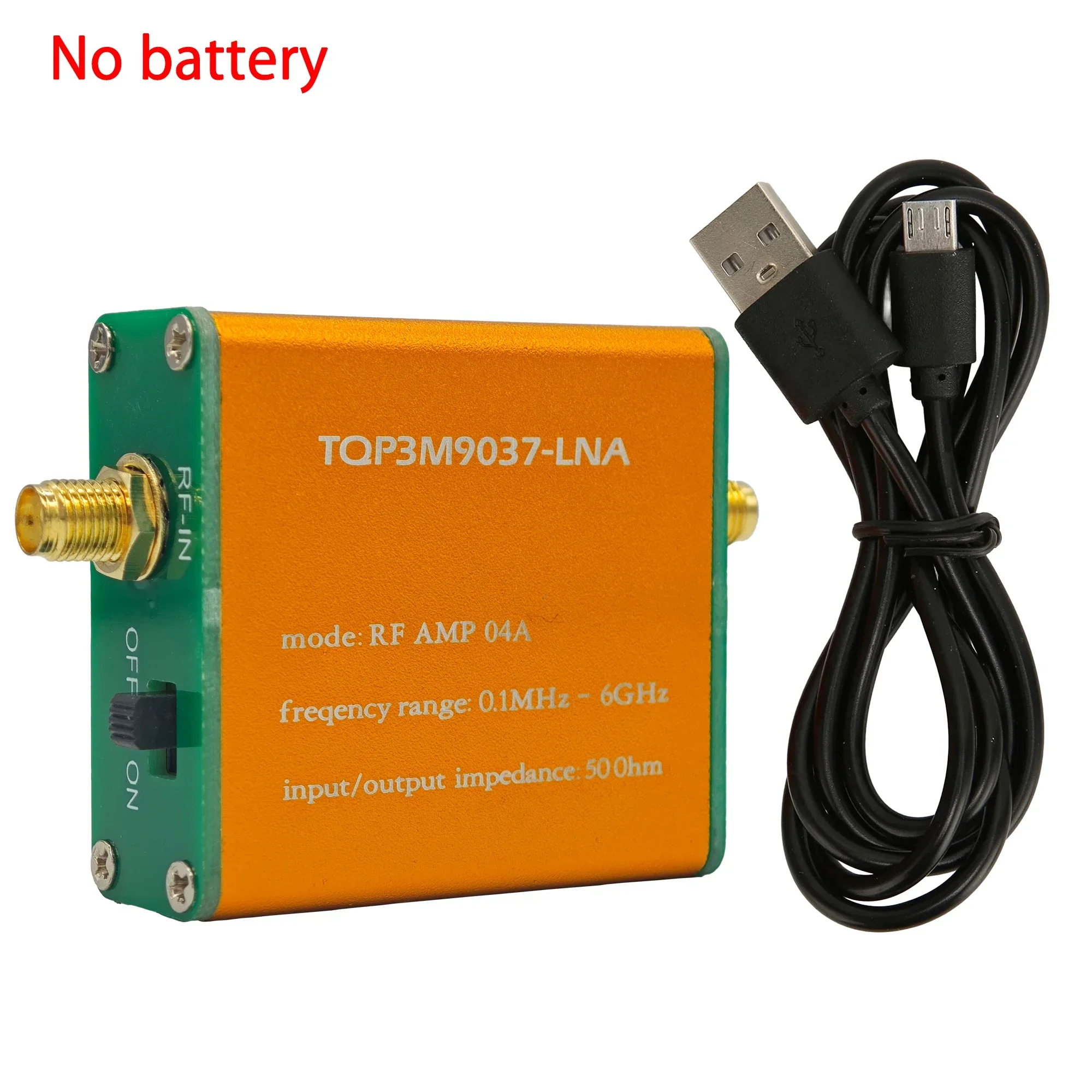

Name: TQP3M9037-LNA RF Amplifier Module - Low Noise Amplifier For Frequency Range Of 0.1MHz To 6GHz Boost Signal I2S2
Brand: TUFZEN
SKU: tqp3m9037-lna-rf-amplifier-module-low-noise-amplifier-for-frequency-range-of-0-1mhz-to-6ghz-boost-signal-i2s2
Availability: InStock

🚚 Free Worldwide Shipping on All Orders!Shop Now

Home Store

TQP3M9037-LNA RF Amplifier Module - Low Noise Amplifier For Frequency Range Of 0.1MHz To 6GHz Boost Signal I2S2

Select Model

From $5.21

Original: $17.38

-70%

TQP3M9037-LNA RF Amplifier Module - Low Noise Amplifier For Frequency Range Of 0.1MHz To 6GHz Boost Signal I2S2—

$17.38

$5.21

The Story

Description

Power supply: 5V 70ma;
Frequency range: 100K-6GHz;
Ultra low noise figure, 0.4 dB NF at 1.95 GHz;
High gain at 1.95 GHz, 20 dB gain;
High linearity,+35 dBm output IP3;
High input power robustness,+22 dBm continuous wave;
Stable performance;
50 ohm input/output;
Connector: SMA female;
Size: 45 * 45 * 18.5mm (excluding joints);
Weight: 46 grams;
Electrostatic bag packaging;
Packaging includes
1 * Amplifier
1 * cable
Note: The battery free version requires Bias Tee bias power supply, and some devices come with bias power supply functions such as for sdrplay 1A, HACKRF ONE, etc.
